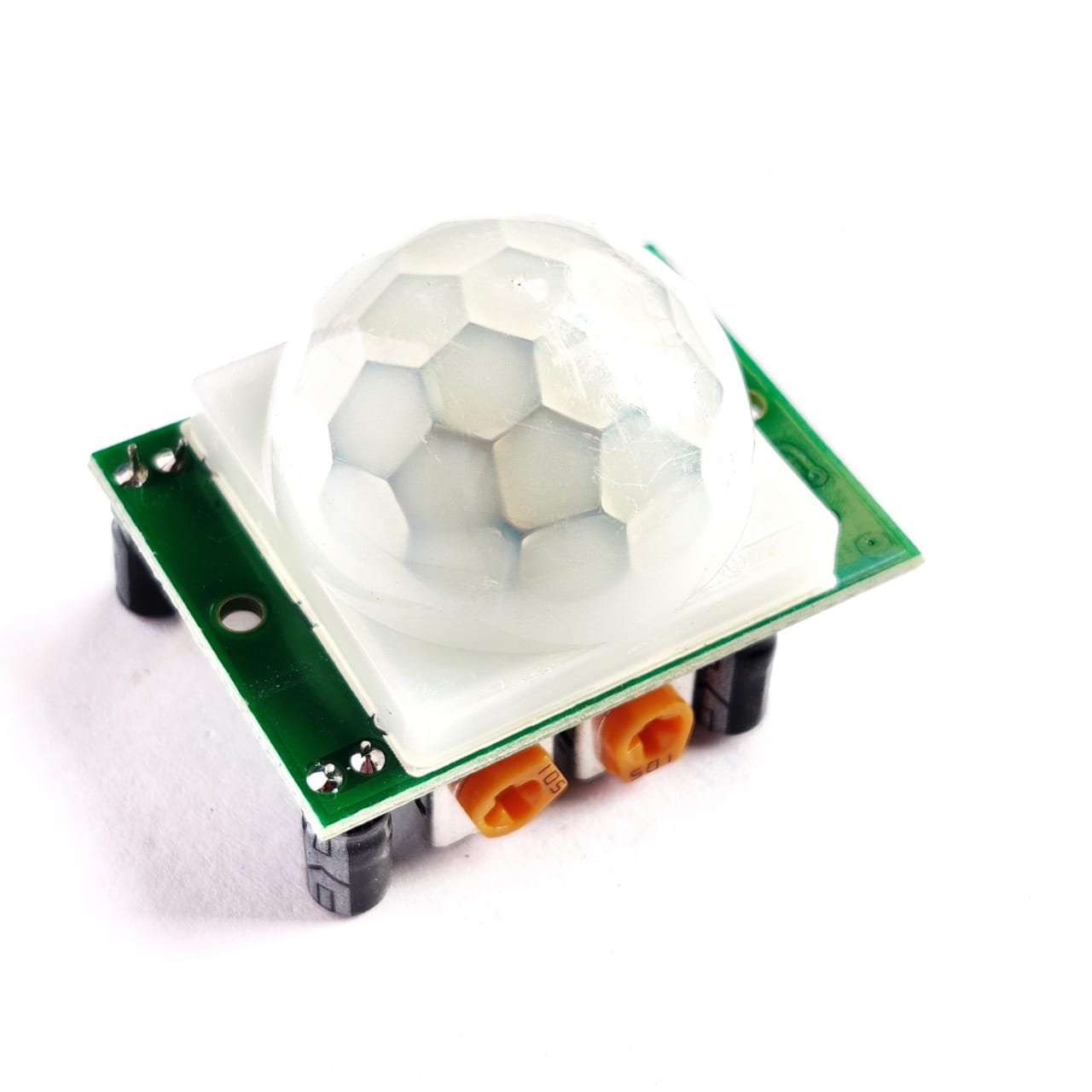

HC-SR501 PIR SENSOR

Name: HC-SR501 PIR SENSOR
SKU: RFS0013
Availability: InStock

Best seller Selling fast! 48 people have this in their carts.

Original price was: ₹80.00.Current price is: ₹65.00.19% OFF (Incl. GST)

12 sold in last 7 hours

8 People are viewing this right now

Operating Voltage: 4.5V to 20V DC.
Output Signal: 3.3V TTL logic level (high when motion is detected, low otherwise)
Current Draw: Typically less than 60uA.
Detection Angle: Less than 140°.
Detection Distance: Adjustable from 3 to 7 meters.
Delay Time: Adjustable from 5 to 200 seconds (or even up to 300s, depending on the module).
Operating Temperature: -20°C to +80°C.
Trigger Modes: Single or repeat trigger (selectable via a jumper on the module).
Dimensions: Typically 32mm x 24mm x 18mm.
Fresnel Lens: Uses a Fresnel lens to improve detection range and field of view.

SKU: RFS0013

NOTE : Shipping rates are calculated based on weights.
More details contact : +919550666630
